This is a list of all recent changes that came with new Antares Simulator features. The main goal of this document is to lower the costs of changing existing interfaces, both GUI and scripts.

v9.2.0

Input

Removed properties

The following properties were removed from settings/generaldata.ini.

  • adequacy patch/enable-first-step
  • adequacy patch/set-to-null-ntc-between-physical-out-for-first-step
  • other preferences/initial-reservoir-levels

If the user provides any of the key/values below:

  • adequacy patch/enable-first-step = true
  • adequacy patch/set-to-null-ntc-between-physical-out-for-first-step = false
  • other preferences/initial-reservoir-levels = hot start

the simulation will fail with a warning. We recommend removing these properties from settings/generaldata.ini. Other values (e.g adequacy patch/enable-first-step = false) will be ignored.

Hydraulic reservoirs / long-term storage

  • In existing file input/hydro/hydro.ini, add property overflow spilled cost difference for each area (double, default value = 1.). This value describes the additionnal cost of overflow relative to the cost of spillage for the area.
  • In file settings/generaldata.ini, for property other-preferences/shedding-policy, add value accurate shave peaks. This new value becomes the default value (previously shave peaks).

Short-term storages

  • Added properties:

    • efficiencywithdrawal (double in [0, 1], default 1) short-term storages (file input/st-storage/clusters//list.ini)
    • penalize-variation-injection boolean, default false (file input/st-storage/clusters//list.ini)
    • penalize-variation-withdrawal boolean, default false (file input/st-storage/clusters//list.ini)

  • Added 5 optional timeseries for each STS in existing directory input/st-storage/series/<area id>/<ST id>/

    • cost-injection.txt
    • cost-withdrawal.txt
    • cost-level.txt
    • cost-variation-injection.txt
    • cost-variation-withdrawal.txt

It is possible to provide only k of these time-series, for k=0..5. However, if present each file must contain either no value (same behavior as no file), or HOURS_PER_YEAR = 8760 coefficients in one column. These timeseries are located along existing series (rule-curves.txt, etc.).

Note that in order for time-series cost-variation-injection.txt and cost-variation-withdrawal.txt to be taken into account, the user needs to set penalize-variation-injection = true (resp. penalize-variation-withdrawal = true). If not, these files will be ignored.

Short-term storages / additional constraints

For each area, add optional file input/st-storage/constraints/<area id>/<storage_id>/additional-constraints.ini

For example

[withdrawal-1]
variable = withdrawal
operator = equal
hours = [1,3,5], [120,121,122,123,124,125,126,127,128]

[netting-1]
variable = netting
operator = less
hours = [1, 168]

Possible values:

  • variable: withdrawal, injection, netting
  • operator: less, equal, greater
  • hours: not empty, any number of lists [h_1, ..., h_n] with n>=1, and coefficients from 1 to 168 included.

Note that all fields are mandatory.

For each constraint, the corresponding RHS time-series must be located at input/st-storage/constraints/<area id>/<cluster_id>/rhs_<constraint id>.txt. The time-series must contain a single column and 8760 rows, empty files are also accepted.

Hydro final levels / scenario-builder

  • Added optional key type "hfl" (hydro final level) in the scenario builder. The syntax is equivalent to existing prefix "hl" (hydro initial level), that is
hl,area,<year> = <value>

By convention, year start at 0 and value must be in interval [0, 1].

Compatibility flag for hydro maximal power

In file settings/generaldata.ini, in new section compatibility, add new property hydro-pmax with possible values

  • daily (default, legacy)
  • hourly (new).

Note: This flag allows to bypass the breaking change that was introduced in version 9.1 the representation of max hydro power (daily -> hourly, see below). If flag is not specified or given value daily, the 8.8 format will be used for hydro pmax time-series. For reference, this format consists of a single file with 4 columns and 365 rows located in input/hydro/common/capacity/maxpower_<area id>.txt.

Output

  • Remove column SPIL ENRG CSR (adequacy patch)
  • Add DTG MRG CSR and UNSP ENRG CSR variables

v9.1.0

Input

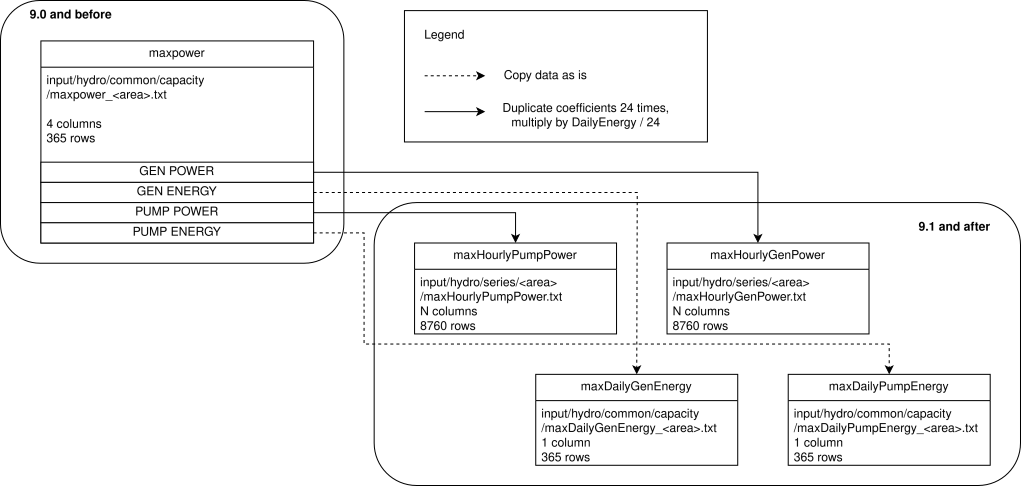

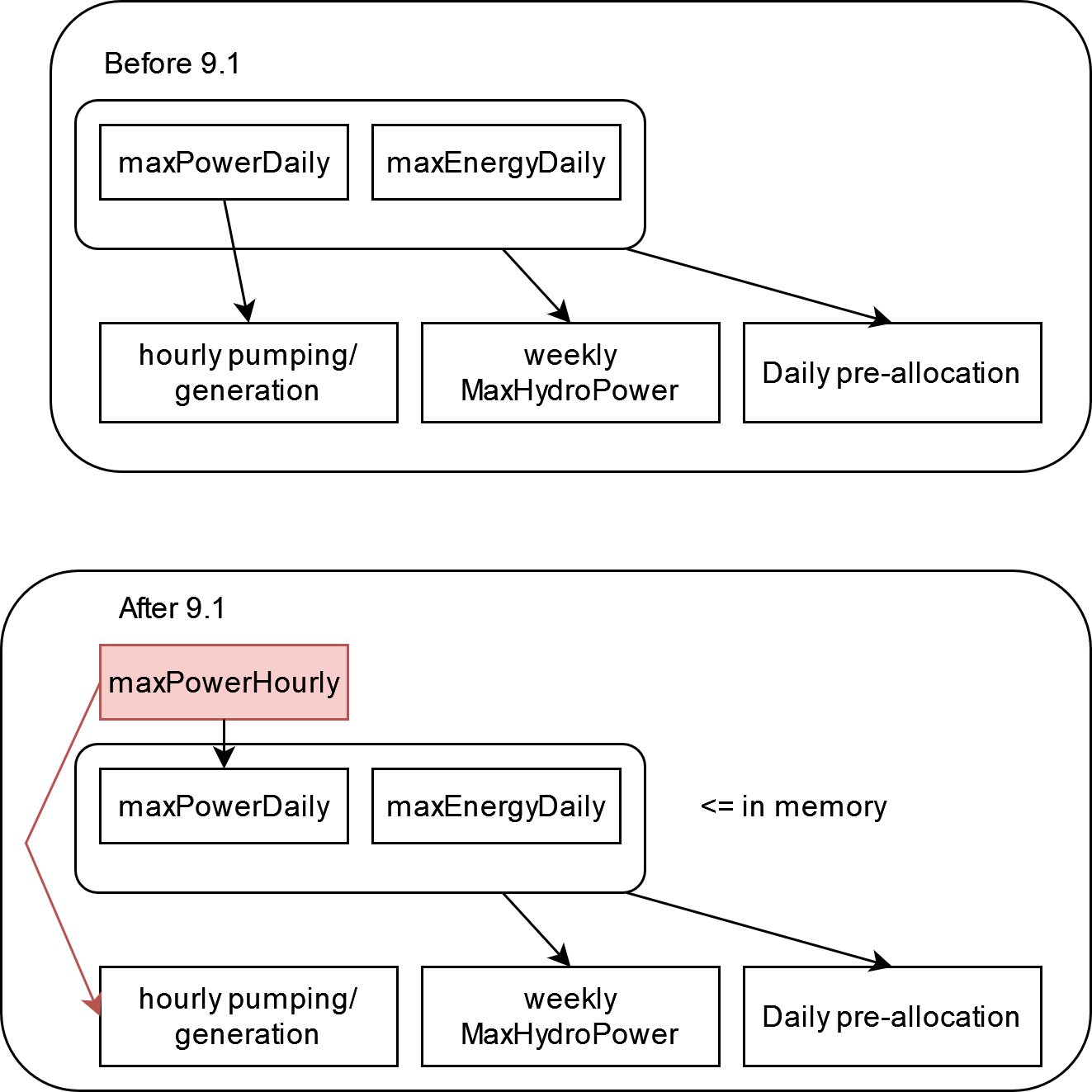

Hydro Maximum Generation/Pumping Power

Regarding Hydro time-series, the scenario builder allows the user to choose, for a given year and area, a different time series whether we consider :

  • inflows, ROR and minimum generation, max pumping & generation (prefix "h")
  • initial level (prefix "hl") This implies that, inside one of the previous categories, the number of available time series is the same

Logic changes

Short term storage groups

STS groups in input are now "dynamic" : group names are no longer fixed by code, user is free to define these groups.

In the "thematic trimming" section, the new dynamic variable STS by group is now used to enable/disable all variables (level/injection/withdrawal) for all groups. The following variables are obsolete and must not be provided

PSP_open_injection
PSP_open_withdrawal
PSP_open_level
...

Other1_injection
Other1_withdral
Other1_level
...
Other5_injection
Other5_withdral
Other5_level

(3*9=27 variables in total)

The default value for group is "OTHER1".

Output

ST Storage

  • Output columns for ST storage are capitalized. For any STS group name my_group, 3 output columns are created : MY_GROUP_INJECTION, MY_GROUP_WITHDRAWAL, MY_GROUP_LEVEL.
  • If a group is empty, no column is produced.
  • There is now a variable number of columns in files values-XXX.txt, depending on the groups of ST storages provided by the user. Note that groups are case-insensitive, for example battery, Battery and BATTERY all represent the same group. If no ST storage exist for a given area, no variables associated to ST storages will be produced.

v9.0.0

Input

Study version

Breaking change in the study format, file study.antares

version = 900

becomes

version = 9.0

Compatibility is kept with versions up to 8.8.0. Starting from version 9.0.0, the new format must be used.

v8.8.0

Input

Short-term storage

If no value is specified for initiallevel, then a default value of 50% is used. Note that this value is used only if initialleveloptim=false, and that false is the default value for initialleveloptim.

Add property enabled (bool, default=true). If a ST storage object is not enabled, it is ignored by Antares Simulator.

Solver logs (expert option)

Save solver logs by setting solver-logs = true (default : false) under the optimization section.

Experimental "MILP" mode

New value milp for existing property other preferences/unit-commitment-mode in file settings/generaldata.ini.

Using this property requires OR-Tools and a MILP solver (XPRESS, COIN)

antares-8.8-solver --use-ortools --ortools-solver coin|xpress ...

Starting from version 9.2, the syntax is as following

antares-solver --solver coin|xpress ...

Output

Cashflow by short-term storage

In existing file details-STstorage-<period>.txt (mc-all & mc-ind), add a new column for each ST storage object, named "STS Cashflow By Cluster", in EURO.

v8.7.0

Input

Scenarized RHS for binding constraints

  • For each binding constraint, file input/bindingconstraints/<id>.txt is split into 3 files:
    • input/bindingconstraints/<id>_lt.txt
    • input/bindingconstraints/<id>_gt.txt
    • input/bindingconstraints/<id>_eq.txt

Each of these files can be either empty or have N column of 8674 rows

  • In file input/bindingconstraints/bindingconstraints.ini, add property group to every section
  • Binding constraints in the same group must have the same number of RHS columns (3 files described above for their respective types). Exception: a constraint in a group can have empty RHS or only one RHS column
  • In file settings/scenariobuilder.dat, add prefix bc for every group of binding constraints. The syntax is the following
bc,<group>,<MC Year> = <TS number>

This line is not mandatory for every group & MC year. If absent, the TS number will be drawn randomly (usual behavior).

  • 0 <= MC Year < generaldata.ini/general.nbyears
  • 1 <=TS number <= index of the column for the group

Thermal cluster new properties

For each thermal cluster, in existing file input/thermal/clusters/<area>/list.ini, under existing sections * <cluster>*, following properties added:

  • costgeneration [string] can take values useCostTimeseries or be excluded from the section if SetManually is selected (default behavior).
  • efficiency [float] between 0-100 (default = 100). Unit is "percentage".
  • variableomcost [float] excluded from the section if default value 0 is selected (default behavior). Unit is Euro / MWh

For each thermal cluster, new files added input/thermal/series/<area>/<cluster>/CO2Cost.txt and * input/thermal/series/<area>/<cluster>/fuelCost.txt. fuelCost.txt and CO2Cost.txt must either have one column, or the same number of columns as existing file series.txt* (availability). The number of rows for these new matrices is 8760.

Output

Scenarized RHS for binding constraints

Add directory bindingconstraints to output directory ts-numbers. For every binding constraint group, add a file ts-numbers/bindingconstraints/<group>.txt containing the TS numbers used for that group.

v8.6.0

Input

Short-term storage

  • Add directories input/st-storage/clusters and input/st-storage/series
  • For each area, add directory input/st-storage/clusters/<area id>/list.ini

  • This file contains the multiple sections whose name is ignored. Each section contains these properties:

    • name [str]
    • group [str]. Possible values: "PSP_open", "PSP_closed", "Pondage", "Battery", "Other1", ... , "Other5". Default Other1
    • efficiency [double] in range 0-1
    • reservoircapacity [double] > 0
    • initiallevel [double] in range 0-1
    • withdrawalnominalcapacity [double] > 0
    • injectionnominalcapacity [double] > 0
    • initialleveloptim [bool]

  • For each short-term-storage object, add the corresponding time-series in directory input/st-storage/series/<area id>/<STS id>. All of these files contain 8760 rows and 1 column.

    • PMAX-injection.txt All entries must be in range 0-1
    • PMAX-withdrawal.txt All entries must be in range 0-1
    • inflows.txt All entries must be > 0
    • lower-rule-curve.txt All entries must be in range 0-1
    • upper-rule-curve.txt All entries must be in range 0-1

Pollutant emission factors

In files input/thermal/cluster/area/list.ini add properties nh3, nox, pm2_5, pm5, pm10, nmvoc, so2, op1, op2, op3, op4, op5 [double]. These properties are emission factors similar to the existing one for CO2.

Adequacy patch

In file settings/generaldata.ini, in section adequacy patch add property enable-first-step [bool]. Default value = true Enable or disable DENS column

Hydro Pmin

For each area, new file added input/hydro/series/<area>/mingen.txt. This file has one or more columns, and 8760 rows. The number of columns may be 1, or identical to the number of columns in existing file mod.txt.

Output

Short-term storage

  • For every short-term storage group, add 3 columns in files values-<period>.txt (mc-all & mc-ind)
    • ST-<group id>-withdrawal
    • ST-<group id>-injection
    • ST-<group id>-level
  • For every area, add file details-STstorage-<period>.txt (mc-all & mc-ind) containing the same columns, but this time for every short-term storage object.

Pollutant emission factors

In files economy/mc-all/areas/ add column: CO2 EMIS. One colum for every pollutant: CO2, NH3, NOX, PM2_5, PM5, PM10, NMVOC, OP1, OP2, OP3, OP4, OP5

v8.5.2

Input

In file settings/generaldata.ini, in section optimization, link-type is now deprecated

v8.5.0

Input

In file settings/generaldata.ini, in section adequacy patch, add properties

  • price-taking-order [string] can take values DENS (default value) and Load.
  • include-hurdle-cost-csr [bool]. Default value = false
  • check-csr-cost-function [bool]. Default value = false
  • threshold-initiate-curtailment-sharing-rule [double]. Default value = 0.0
  • threshold-display-local-matching-rule-violations [double]. Default value = 0.0
  • threshold-csr-variable-bounds-relaxation [int]. Default value = 3

Output

  • If include-adq-patch is set to true, add column LMR VIOL. in files values-<period>.txt (mc-all & mc-ind)
  • If include-adq-patch is set to true, add column SPIL. ENRG. CSR in files values-<period>.txt (mc-all & mc-ind)
  • If include-adq-patch is set to true, add column DTG MRG CSR in files values-<period>.txt (mc-all & mc-ind)

v8.4.0

Input

In file settings/generaldata.ini, in section optimization, change admissible values for key transmission-capacities [str]:

  • local-values (formerly true, default) uses the local capacity of all links
  • null-for-all-links (formerly false) sets the capacity of all links to 0
  • infinite-for-all-links (formerly infinite) sets the capacity of all links to +infinity
  • null-for-physical-links sets the capacity of physical links to 0, uses the local capacity for virtual links
  • infinite-for-physical-links sets the capacity of physical links to +infinity, uses the local capacity for virtual links

Previous values (true, false and infinite) are still admissible for compatibility.

Remove "Split MPS"

In existing section optimization, remove property include-split-exported-mps [bool]. This property will be ignored ( no error) for compatibility.

Result format

In file settings/generaldata.ini, in existing section output, add property result-format [str]. Default value = txt-files. If this property is set to zip, all results are written into a single zip archive, instead of multiple files.

Output

Result format

If property output/result-format is set to zip, all results are stored in a single archive. The hierarchy within this archive remains identical, for example economy/mc-all/areas/. Otherwise, txt files are created like in previous versions.

v8.3.2

Writing MPS files

MPS files of first optimization used to be overwritten by MPS files of second optimization. Not anymore. Now user can choose to print :

  • no MPS file,
  • MPS files related to the first optimization (named problem-<week>-<year>--optim-nb-1.txt),
  • MPS files related to the second optimization (named problem-<week>-<year>--optim-nb-2.txt),
  • MPS files related to the both optimizations.

In the generaldata.ini input file, corresponding values for include-exportmps are : none, optim-1, * optim-2, both-optims*.

Compatibility with existing values is maintained (true = both-optims, false=none).

Marginal price of a binding constraint

Input

In the context of the addition of a new output variable (marginal price associated to a binding constraint), file * input/bindingconstraints/bindingconstraints.ini* get 2 new parameters for each binding constraint. They control which marginal price time granularity is printed, either regarding year by year or synthesis results.

  • filter-year-by-year. Default value = hourly, daily, weekly, monthly, annual
  • filter-synthesis. Default value = hourly, daily, weekly, monthly, annual

Marginal cost for binding constraints

Still on the binding constraints marginal price results, 2 new folders binding_constraints are created inside any simulation output folder, more precisely under mc-ind and mc-all.

Examples :

  • output/yyyymmdd-hhmmeco/economy/mc-ind/00001/binding_constraints
  • output/yyyymmdd-hhmmeco/economy/mc-all/binding_constraints

These folders are meant to contain results of any kind regarding binding constraints marginal price (year by year or synthesis).

Examples of output files inside these folders :

  • binding-constraints-hourly.txt
  • binding-constraints-weekly.txt

v8.3.1

Output

Add file execution_info.ini, containing information about the execution time for the various steps of a study, as well as study related information that affects performance.

[durations_ms]
hydro_ventilation = 7
mc_years = 693
post_processing = 0
study_loading = 51
synthesis_export = 731
total = 1526
yby_export = 114

[number_of_calls]
hydro_ventilation = 1
mc_years = 1
post_processing = 1
study_loading = 1
synthesis_export = 1
total = 1
yby_export = 1

[optimization problem]
constraints = 1008
non-zero coefficients = 15894
variables = 1512

[study]
antares version = 831
areas = 3
enabled bc = 0
enabled daily bc = 0
enabled hourly bc = 0
enabled thermal clusters = 1
enabled weekly bc = 0
links = 2
max parallel years = 1
ortools solver = xpress
ortools used = true
performed years = 1
unit commitment = fast

v8.3.0

Input

In file settings/generaldata.ini, add section adequacy patch, with properties

  • include-adq-patch [bool]. Default value = false
  • set-to-null-ntc-from-physical-out-to-physical-in-for-first-step [bool]. Default value = true
  • set-to-null-ntc-between-physical-out-for-first-step [bool]. Default value = true

In existing section optimization, add property include-split-exported-mps [bool]. Default value = false

Add variables DENS and Profit by plant, which may be used for thematic trimming, see file settings/generaldata.ini , section variables selection.

For each area, add a new file input/areas/<area>/adequacy_patch.ini containing a single section adequacy-patch. This section contains a single property adequacy-patch-mode, that can take values

  • outside
  • inside
  • virtual

Example

[adequacy-patch]
adequacy-patch-mode = outside

Output

  • If include-adq-patch is set to true, add column DENS in files values-<period>.txt (mc-all & mc-ind)
  • Add Profit by plant column in files details-<period>.txt (mc-all & mc-ind)
  • If include-split-exported-mps is set to true, create split MPS files in the output folder
  • Add file time_measurement.txt, containing performance data

NOTE: period can be any of the following

  • hourly
  • daily
  • weekly
  • monthly
  • annual

v8.2.0

Input

  • For each link, the first two columns of file input/links/<area 1>/<area 2>.txt have been moved to * input/links/<area 1>/capacities/<area 2>_direct.txt and input/links/<area 1>/capacities/<area 2>_indirect.txt respectively. Note that these two files may contain more than one column, but must contain the same number of columns. The 6 remaining columns have been moved to area * input/links/<area 1>/<area 2>_parameters.txt**.

  • In file settings/generaldata.ini, add hydro-debug [bool] key to existing section output. Default value is false.

Output

If parameter hydro-debug is enabled, a debug directory is created in the output folder.
